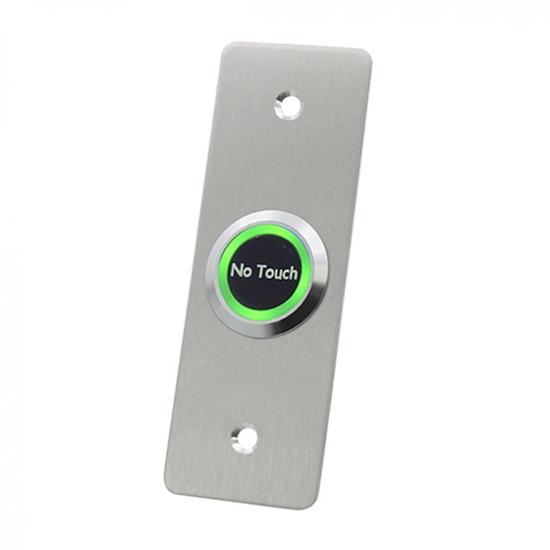

The CL-NT40 is a slimline request to exit device that uses infrared technology to grant access without needing to be touched.
The NT-40 is only 40mm wide. This allows it to fit on 45mm or wider metal door frames. When powered on, the outer ring of the sensor is blue. When a hand is held in front of the sensor (5-10cm), the light turns green & the relay activates.
It features two wires for power, & three for relay control (NC/COM/NO). After being wired into a new or existing access control system, it can be used to open a Mag Lock, Electric Strike or V-Lock.
Weight - 100g
Dimensions - 115mm x 40mm
|Red/Black||+ve/-ve voltage (12-24v DC)|
|Yellow||Relay Normally Closed|
|Blue||Relay Normally Open|
