The G5 Intelligent Bluetooth Gateway allows access to various features of "TTLock" enabled locks without needing to be in Bluetooth range of the lock. By installing the Gateway, the locks can be controlled using Wi-Fi and the internet.

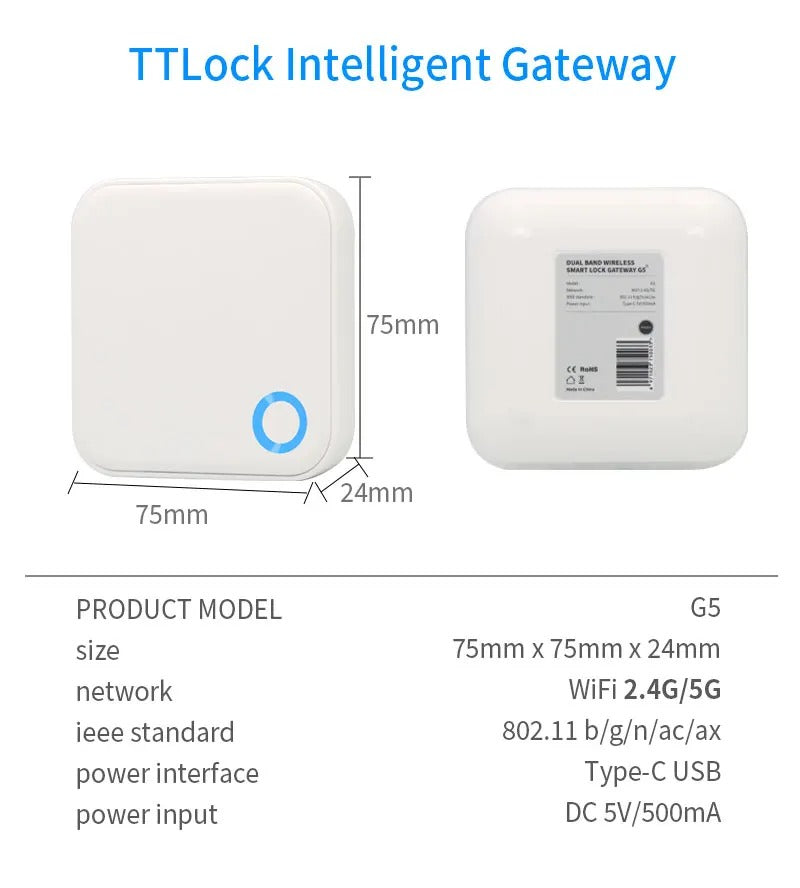

Unlike the G2 variant, the G5 gateway can communicate over 2.4GHz, 5GHz & combined Wi-Fi networks. It adds support for 802.11ac/ax (Wi-Fi 5 & Wi-Fi 6) protocols.

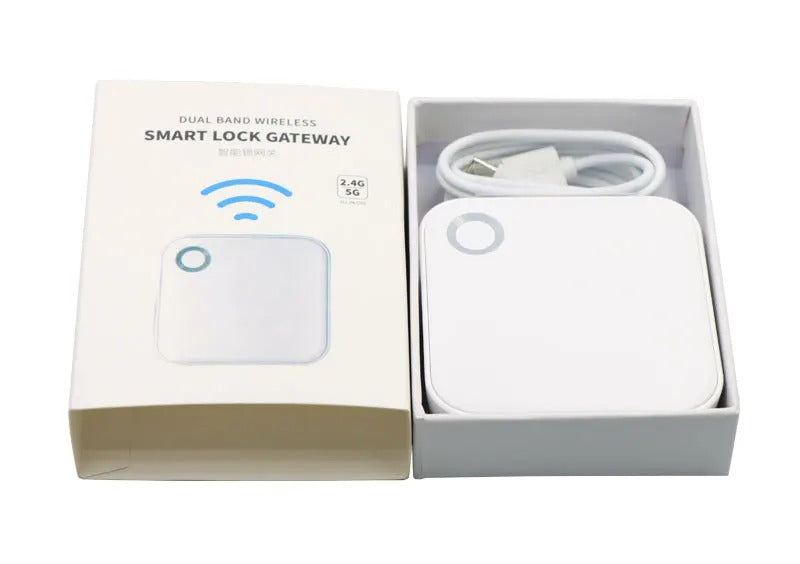

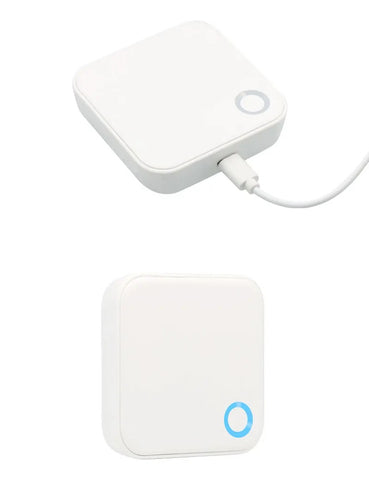

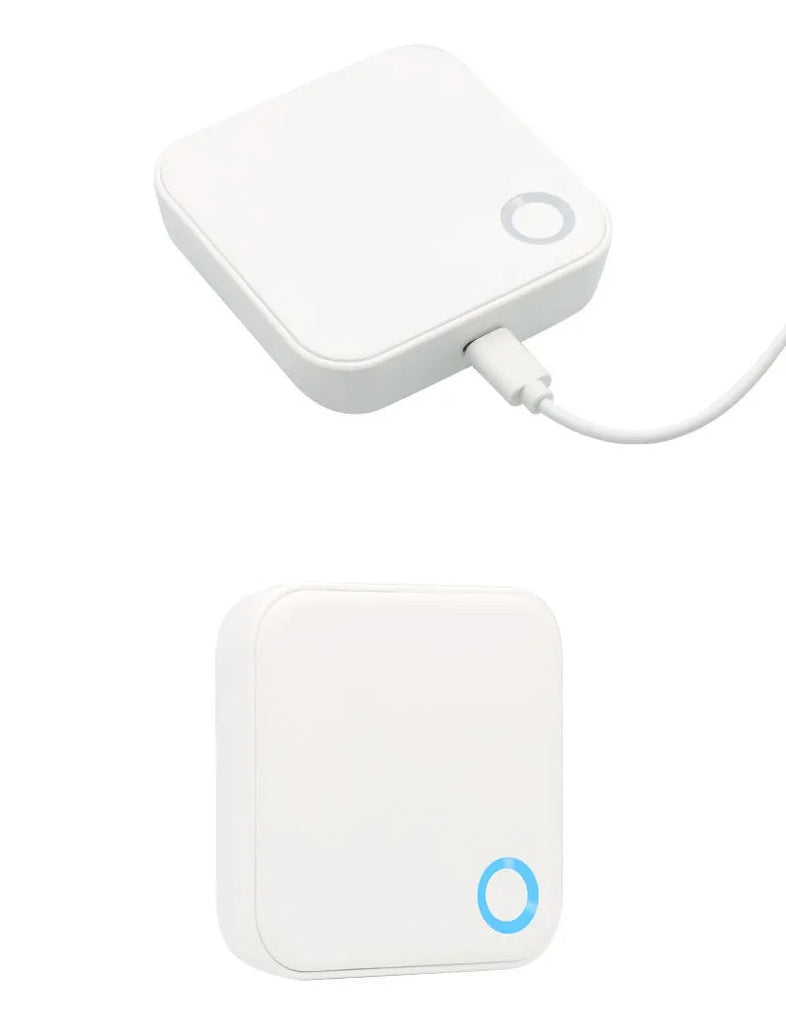

An included USB-C cable powers the device. A USB power adapter is also required (not included)
For the Gateway to function correctly, it needs to be in range of a 2.4GHz, 5GHz or combined Wi-Fi network (2.4GHz is still recommended if possible, as it can travel further than 5GHz) & be within 10 metres of the Bluetooth locks you wish to control. (Solid walls may impede Bluetooth & Wi-Fi signals)
If you would like a gateway that connects to your network using Ethernet and/or is powered by Power over Ethernet, please consider our G3 and G3PoE gateways, which can be found on our Bluetooth Lock Accessories page.
The Gateway allows for custom codes to be added/deleted remotely. This can be useful for landlords, Airbnb hosts, & many other users. It also gives an audit trail & push notifications for when doors are opened.
Insructions
- Open "TTLock" and press the menu button. ("Hamburger"/3 horizontal lines)
- Select the "Gateway" option, then press the "+" icon.
- Press the "G5" Gateway option, then power the Gateway using the included USB-C cable. The light will start blinking Blue & Red.
- Choose the Gateway from the list, name it & move to the next page.
- Select the 2.4GHz or 5GHz network to connect the Gateway to.
- Enter the network's password & a name for the Gateway, then press "OK "
- The Gateway will then search for nearby locks.
-
Afterwards, the connected locks will be shown as well as their signal strength.
Many settings can now be modified while outside of the Bluetooth range of the lock. Push notifications and audit trail can also be accessed. Web access can also be used to monitor battery levels, device audit trails, and to add/remove users.
Features
- Remote Lock
- Remote Unlock (disabled by default)
- Real Time Audit Trail
- Push Notifications
- Add/Delete Passcodes/eKeys
- Lock Setting Editing
*The setup details for this new G5 gateway may vary slightly from the steps in this video, but the process is more or less the same.
For more information on this product, use the link below.
